Whether our Ceramic Ignition Electrode, alumia ignition electrode, Ignition Electrode For Wall-Mounted is standard designs or customized according to customer needs, it is well-known worldwide for its high performance, high reliability and innovation. We improve the process according to the requirements of our customers to better serve them and thus establish long-term and stable partnerships. To this end, our company will be realistic as a necessary subject, and pay for it. We sincerely hope that through hard work, excellence, unique design, high-quality products and quality service, we can serve you wholeheartedly. Our company can flexibly and effectively respond to changes in market demand, meet the individual needs of enterprise customers, quickly adapt to changes in the external and internal environment of the enterprise, and better improve the efficiency of product development.



Working principle and product details

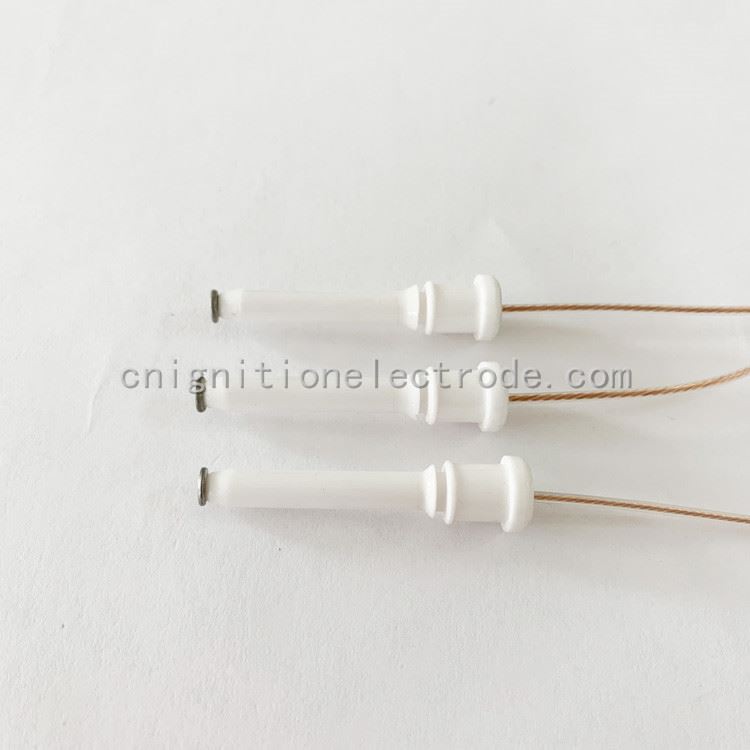

01 Product main image

02 Ceramic

Ceramic length:42.8mm Ceramic diameter:4.9mm-7.5mm

The 95% alumina is made of hot pressure casting slurry and sintered at a high temperature of 1500℃.



It has the following advantages:

1. High mechanical strength and wear resistance;

2. Strong chemical resistance to acid and alkali.

3. Good electrical insulation performance at room temperature and high temperature.



03 Electrode part

Electrode material:Ocr25Al5 Cr20Ni80 Electrode length:4.9mm

Iron-chromium-aluminum resistance electric heating alloy has the characteristics of high resistivity, low temperature coefficient of resistance and high operating temperature.

Resistance electric heating alloy, this kind of alloy has stable structure, stable electrical and physical properties, good high temperature mechanical properties, good cold deformation plasticity, good weldability, and will not produce brittle fracture after long-term use. It is mostly used in the manufacture of household appliances and heating elements whose working temperature is below 1600℃, with long service life



04 Wire

Wire material: Copper with Teflon protection cover

Pure copper can significantly improve the strength, corrosion resistance,hardness, electrical resistance and thermoelectricity, and reduce the temperature coefficient of resistivity. The physical properties are exceptionally good, the ductility is good, the hardness is high, the color is beautiful, and the corrosion resistance is rich in deep drawing performance.



05 Terminal

Various quick-connect terminals provide 2.8mm x 0.8 mm or 2.8mm x 0.5mm and 4.8 mm x 0.8 mm, SM terminals, sheath, and cold press ports



Production process

1.Raw material mixing	2.Hot press injection molding
3.High temperature firing	4.Thermoforming
5.Glazing	6.Electrical measurement



Yangzhou Lisheng Ceramics Co., Ltd. was established on May 31, 2010 with a registered capital of 10 million yuan. Its business scope is: electronic ceramics and ceramic accessories processing and sales. Large quantities of products are exported, mainly to North America, Japan, Europe, Taiwan, Iran and other regions.



FAQ:

1.What is the main product of your company?

We are a company specializing in ignition electrodes and spark plugs. Our products are widely used in gas appliances.

2.How to contact you?

Alibaba online shop：yzlstc.en.alibaba.com. E-mail:sale@cnignitionelectrode.com.

Whatsapp：+86 13773334773;

3.Can you provide customized services?

Yes, we can provide customized services.



Our company pursues the idea that we should change if we want to make progress and we should constantly improve our products if we want to have better Spark Plug to Gas BBQ Grill. We want to establish a global vision and advocate a sense of responsibility, making each person responsible for his or her own actions and work. Our company adheres to the business philosophy of 'professional diligence, honesty, altruism, and win-win'. From the actual needs of the market, we strive to create a trustworthy corporate image.

Hot Tags: gas grill spark plug, suppliers, manufacturers, factory, customized, wholesale, bulk, cheap, for sale, in stock, free sample, gas igniter electrode, Gas Heater ignition electrode, Ceramic Ignition Electrode, boiler ceramic ignitor electrode, Gas Ignition Electrode, Igniter Electrode for Gas Cooker
