BBQ Spark Plug

Product parameter

Working principle and product details

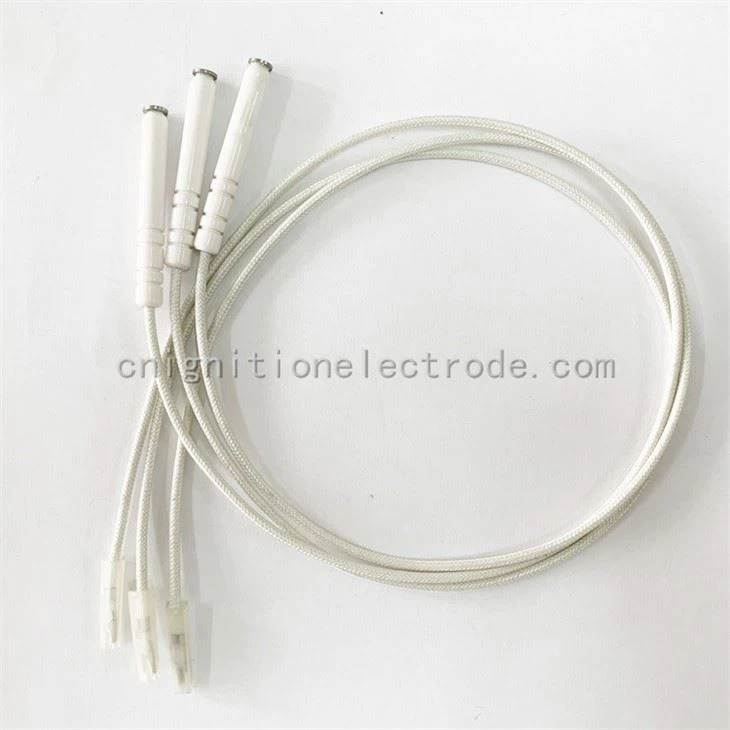

01 Product main image

Combustible varieties of ceramic ignition needles: combustible gas, bio-alcohol oil, well-atomized diesel, kerosene, etc., can be reliably ignited. The ignition needle adopts titanium metal surface treatment, aluminum metal steel needle, high-temperature anti-cracking 95 ceramic material, suitable for long-term combustion above 1500 degrees and under conditions of wind wear without damage, deformation, or oxidation. The burner ignition needle has the advantages of sensitive ignition, exquisite and beautiful appearance, and the core pole is made of imported alloy, which has the advantages of stable detection, durability, strong aging resistance, high temperature resistance, corrosion resistance, and high insulation strength. It has been widely used at home and abroad Applications. This product is widely used in various pipeline gas, liquefied petroleum gas, natural gas and similar water heaters, stoves, gas ovens, etc.

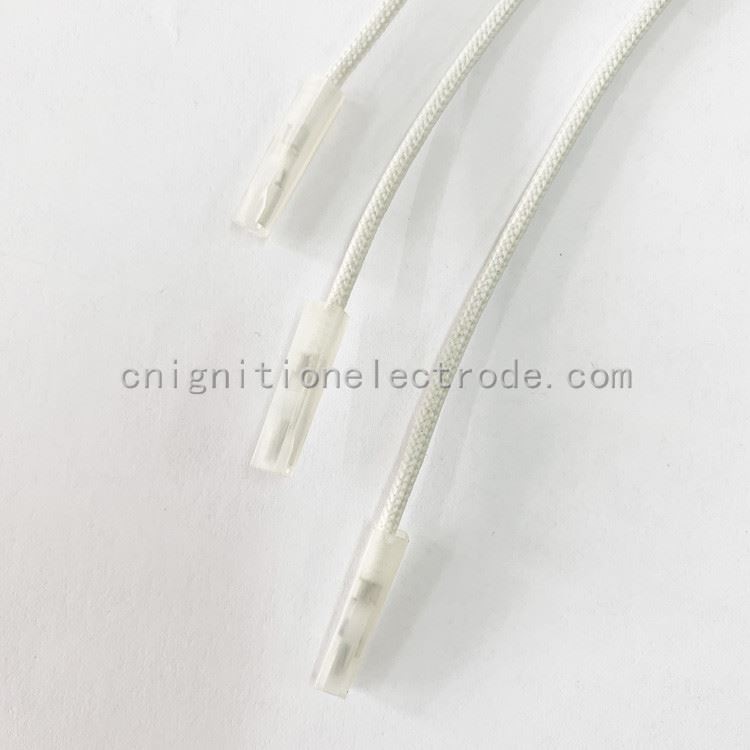

02 Terminal part

The terminal is inserted on the pulse, the function is to receive the electrons emitted by the pulse.

Various quick-connect terminals provide 2.8mm x 0.8 mm or 2.8mm x 0.5mm and 4.8 mm x 0.8 mm, SM terminals, sheath, and cold press ports.

03 Wire part

Wire material: Alloy with glass fiber protection cover

Advantages of glass fiber: good insulation, strong heat resistance, good corrosion resistance and high mechanical strength.

(1) High tensile strength and low elongation (3%).

(2) High elastic coefficient and good rigidity.

(3) The elongation is large within the elastic limit and the tensile strength is high, so the impact energy is large.

(4) It is an inorganic fiber with non-combustibility and good chemical resistance.

(5) Low water absorption.

(6) Good scale stability and heat resistance.

(7) Not easy to burn, it can be melted into glass beads at high temperature.

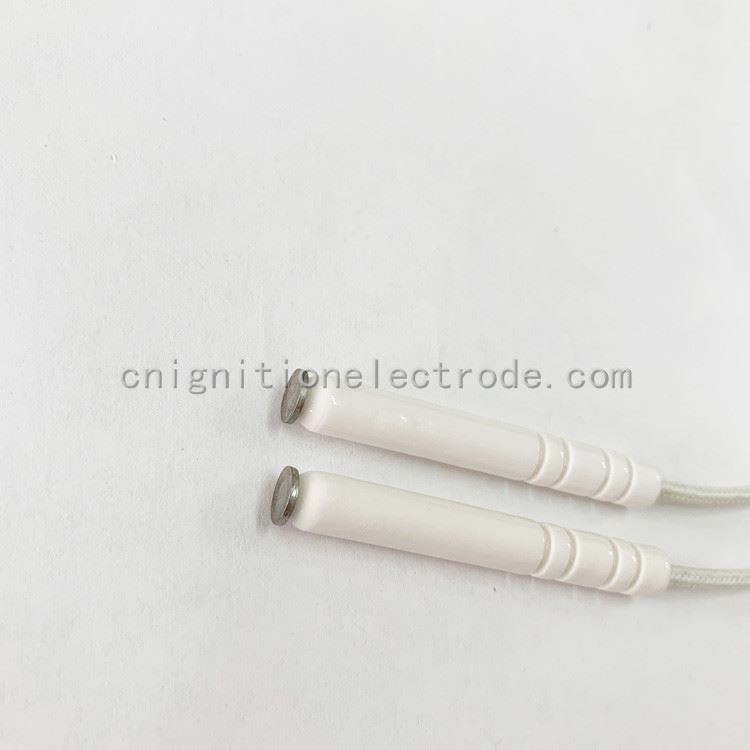

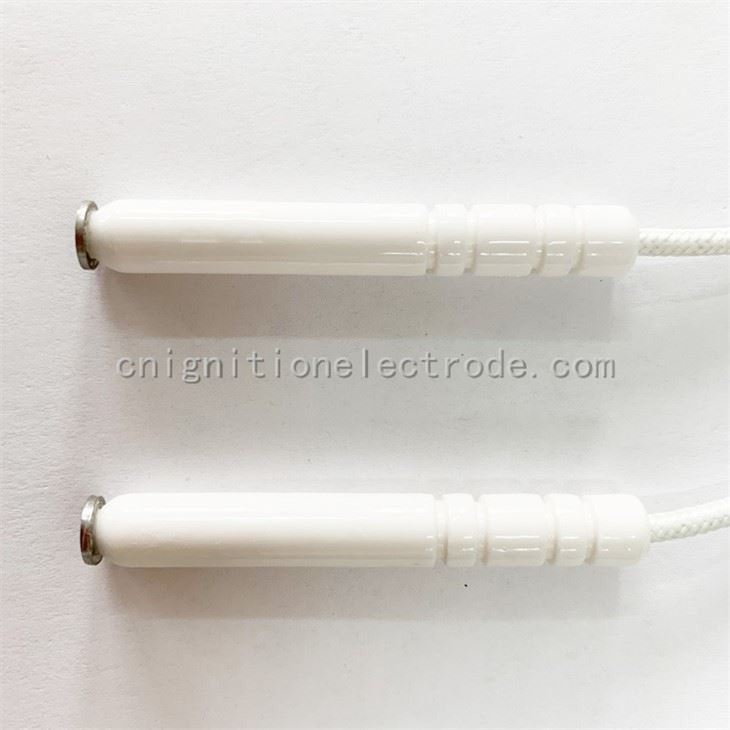

04 Ceramic part

Ceramics Material: 95% Alumina

Alumina ceramics have the following advantages:

1. Excellent insulation, low high-frequency loss but good high-frequency insulation;

2. Heat resistance, low thermal expansion coefficient, high mechanical strength and good thermal conductivity;

3. Chemical resistance Features such as sex and molten metal.

05 Electrode part

Electrode material:Ocr25Al5.Cr20Ni80；Diamete:7.1mm

Iron-chromium-aluminum resistance electric heating alloy has the characteristics of high resistivity, low temperature coefficient of resistance and high operating temperature.

Resistance electric heating alloy, this kind of alloy has stable structure, stable electrical and physical properties, good high temperature mechanical properties, good cold deformation plasticity, good weldability, and will not produce brittle fracture after long-term use. It is mostly used in the manufacture of household appliances and heating elements whose working temperature is below 1600℃, with long service life.

Production process

1.Raw material mixing	2.Hot press injection molding
3.High temperature firing	4.Thermoforming
5.Glazing	6.Electrical measurement
7.Sorting	8.Assembly

Packing method

7-layer corrugated box	7-layer corrugated box	7-layer corrugated box

Yangzhou Lisheng Ceramics Co., Ltd. invested 3.5 million yuan in November 2015 to rent a 2358 m2 workshop located in Shuangbao Road, Liubao Industrial Concentration Zone, Baoying County, Baoying County Liubao Industrial Zone Development Co., Ltd., and purchased a slow mixer , Hot press forming machine, environmentally friendly gas pusher furnace, high temperature pusher electric furnace and other advanced equipment, with an annual output of 6 million electronic ceramics and ceramic accessories.

FAQ:

1.Are you a manufacturer or a trader？

We are a manufacturer with our own factory located in Jiangsu.

2.What is the main product of your company?

We are a company specializing in ignition electrodes and spark plugs. Our products are widely used in gas appliances.

3.How long does it take from order to delivery；

It depends on the quantity of your order, usually around 10 days.

4.Can you provide customized services？

Yes, we can provide customized services.
